Bosch Power Tools Bosch 5″ X-LOCK Xtreme Segmented Diamond Blade DBX541E

Bosch

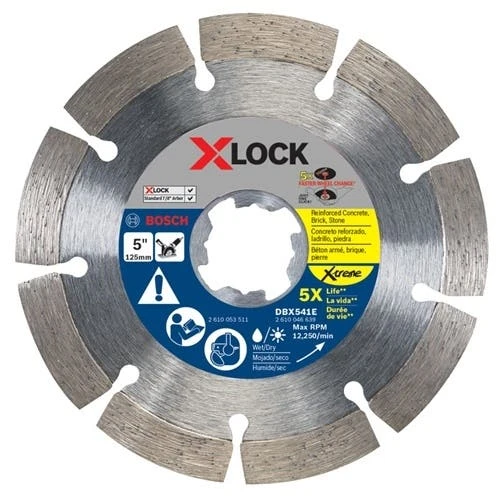

5 In. X-LOCK Xtreme Segmented Diamond Blade DBX541E

FEATURES:

• Diamond blades with the X-LOCK mount design – offer a faster; fixed mount and high-quality materials
• X-LOCK wheel change – features snap-on mounting and a wheel-release lever on grinder for change-out up to five times faster
• Tool-free disc swap – the wheel mounts properly without the need for a spanner wrench or flange nuts for no loseable parts
• Segmented rim diamond blade – designed for fast cuts in hard material; including reinforced concrete; brick; and stone
• Fast cutting – quality diamonds embedded in an optimized pattern to help ensure that the diamonds are effectively engaged in cutting the material
• Steel core – delivers straight smooth cuts with less wobble
• Backward compatible – Bosch X-LOCK diamond blades are backward compatible with standard 7/8 In. arbor mounts

INCLUDES:

• (1) 5 In. X-LOCK Xtreme Segmented Diamond Blade

SPECIFICATIONS:

Application	Reinforced concrete; brick; stone
Arbor	X-LOCK; 7/8
Cutting Depth	1-1/2″
Diameter	5″
Segment Thickness	0.075″
Tool	Small Angle Grinder / X-LOCK Small Angle Grinder

“
