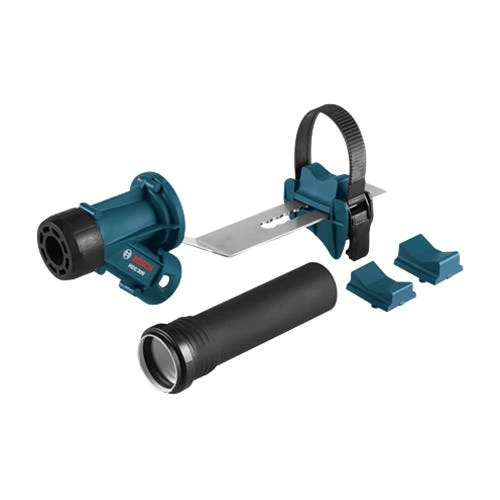

Bosch Power Tools Bosch SDS-Max / Spline Chiseling Dust Collection Attachment HDC300

Bosch

SDS-Max Spline Chiseling Dust

FEATURES:

• Chiseling dust collection shroud – focuses air suction from the vacuum around the chisel for maximum dust collection.
• Unique ski-boot style clamping band – provides easy installation and adjustment onto the hammer tube.
• Adjustable metal extension arm – provides easy adjustment of the attachment for proper positioning around the chisel and can also accommodate different chisel lengths.
• 1-3/8 dust port – fits Bosch dust extractor vacuum nozzles; Bosch adaptors (sold separately) can convert the dust port to 1-1/4″ or 2″ vacuum nozzles.
• Rubber bumper – provides cushion on the tip of the shroud if the shroud contacts the work piece during chiseling applications.
• 3-piece adaptor set – allows the chiseling dust collection attachment to be installed on different size hammers.
• Used on Model No.: SDS-max/spline rotary hammers 11240; 11247; RH540M; RH540S; 11264EVS; 11265EVS; 112EVS; RH745; RH850VC; 11245EVS (used in chiseling mode).
• SDS-max demolition hammers 11388; DH507; DH712VC; DH1020VC (does not work with 11316EVS).

“
