Ingersoll Rand

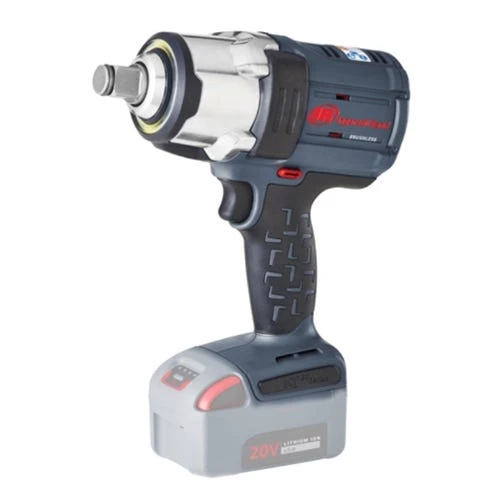

3/4 20V High Torque Impact Wrench (Bare Tool) W7172
FEATURES:
- Tuned impact mechanism with 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
- Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
- Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger; drive stops spinning.
- 4 dimmable settings on the shadowless 360º LED light ring.
- Tough composite housing and patented steel-reinforced frame protects against aggressive fluids; chemicals and repeated drops.
- Ideally used for removing or fastening cradle bolts tire changing; fleet truck maintenance and in industrial and MRO settings.
- Weighs only 7.8 lbs (with BL2022 battery).
- 3-year warranty.
SPECIFICATIONS:
| VOLTAGE DC | 20 |
|---|---|
| BATTERY MODEL | BL2010; BL2022 |
| CONFIGURATION | Pistol |
| DRIVE SIZE | 3/4 in. |
| DRIVE TYPE | Square; Socket Retainer Ring and Thru-Hole |
| NUT-BUSTING TORQUE (FT-LB) | 1500 |
| NUT-BUSTING TORQUE (NM) | 2033 |
| HAND TIGHT FORWARD TORQUE (FT-LB) | 4-10 |
| HAND TIGHT FORWARD TORQUE (NM) | 5-14 |
| WRENCH TIGHT FORWARD TORQUE (FT-LB) | 35-110 |
| WRENCH TIGHT FORWARD TORQUE (NM) | 47-149 |
| HALF POWER FORWARD TORQUE (FT-LB) | 530 |
| HALF POWER FORWARD TORQUE (NM) | 720 |
| MAX REVERSE TORQUE (FT-LB) | 1000 |
| MAX REVERSE TORQUE (NM) | 1360 |
| BLOWS PER MINUTE | 2450 |
| FREE SPEED (RPM) | 0-1900 |
| WEIGHT W/OUT BATTERY (LBS) | 6.2 |
| WEIGHT W/OUT BATTERY (KG) | 2.8 |
| WEIGHT W/ BATTERY (LBS) | 7.8 |
| WEIGHT W/ BATTERY (KG) | 3.5 |
| LXWXH IN. | 8.5 |
| LXWXH MM. | 215 |
“
