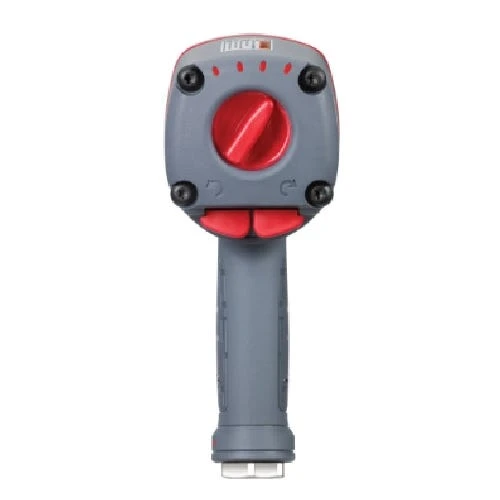

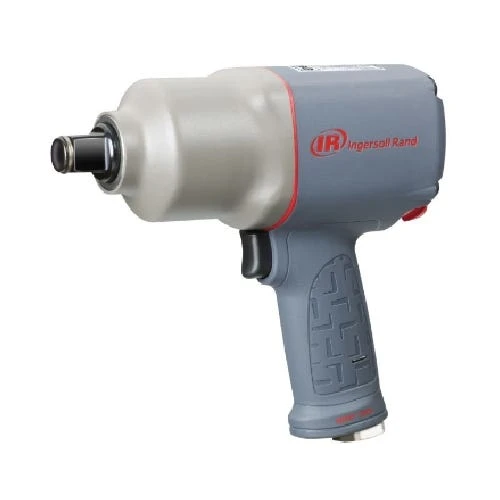

Ingersoll Rand 3/4″ Impact Wrench 2145QiMAX

Ingersoll Rand

Ingersoll Rand 2145QiMAX | 2155QiMAX Series Impact Wrench 2145QIMAX

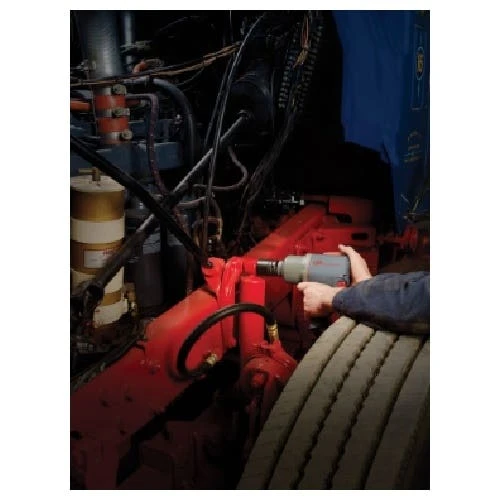

The Ingersoll Rand 2155QiMAX 1 Impactool delivers incredible performance and industrial-grade durability in an impact wrench. Plus; its efficient air motor reduces air consumption to save you money. Perfect for the most demanding applications; such as truck and bus service; construction and agricultural equipment maintenance; as well as the MRO market.

FEATURES:

• 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg) and is compact enough to access tight spaces.
• Built to last and designed to withstand tough use in rugged environments; a two-year limited warranty is standard.
• An air motor that’s 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime; better tool performance; and less money spent on compressed air.

SPECIFICATIONS:

Model	2145QiMAX
Configuration	Pistol
Actuation	Trigger
Drive Size	3/4 in.
Drive Type	Square; Hog-Ring and Thru-Hole
Nut Busting Torque Ft-Lb (nm)
Forward Torque Ft.-Lb (nm)	1100 (1491)
Max Reverse Torque Ft.-Lb (nm)	1350 (1830)
BPM	1150
Free Speed (RPM)	7000
Impacting Sound Level DB(A)– ISO15744 (Pressure/Power)	96.3 / 107.3
Free Speed Sound Level DB(A) — CAGI/ANSI S12.41 (Pressure/Power)	91.1 / 102.1
Vibration Level M/S2 (K)	8.7 (2.7)
Weight Lbs (Kg)	7.4 (3.4)
Width IN(mm)	3.3 (83)
Height IN(mm)	8.1 (205)
Length IN(mm)	8.5 (217)
Air Inlet	3/8 in.
Min Hose Size IN(mm)	1/2 (13)
Air Consumption @ Load CFM (L/Min)	32 (906)
Average Air Consumption CFM (L/Min)	8.5 (241)
PSI	90
BAR	6.2

“
