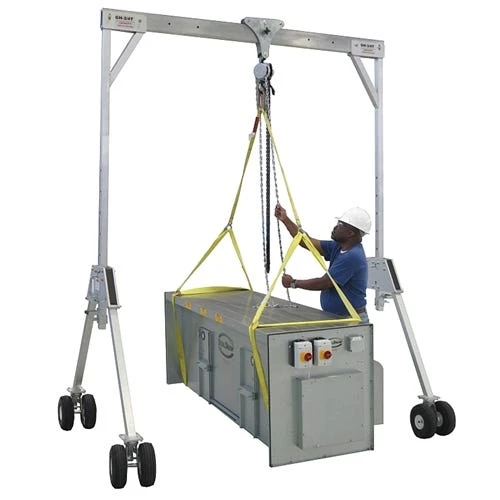

Sumner GH 2 Ton 15′ Beam Gantry Lift (8 Wheels) Aluminum 785100

Sumner

Sumner GH 2 Ton 15′ Beam Gantry Lift (8 wheels) Aluminum 785100

2 Metric Ton Aluminum Gantry

FEATURES:

• Available in 8′; 10′; 12′; 15′; 3 m; 4 m & 5 m sizes
• 2 Metric Ton (4450 lb) Capacity
• Lightweight & Portable
• Quick Two-Person Assembly
• Adjustable Span
• Minimum Pieces – 2 A-Frames with casters; Trolley; Cross Beam and attaching hardware
• Aluminum Frames & Beam
• 8″ (200 mm) Locking Casters
• Height Adjustment
• Pinch Point Free

SPECIFICATIONS:

Part #	Gantry Model	Max/Min Height to Lifting Eye	Max Height to Top of Trolley	Max Working Span	Spans Between Wheels	Height Adjustment	Span Adjustment	Max width of “A” Frame	Stored Height of “A” Frame
785100	GH2T-15	114″ 84″	128.5″	142″	181″	6″	13″	60.625″	100″

“
