Sumner

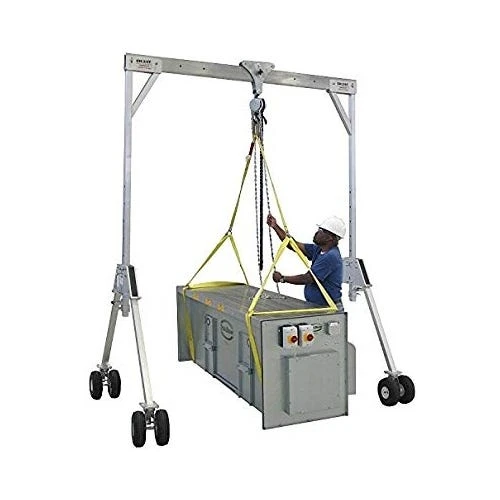

GH2T-8 (8’/8 wheels) 4400lb Gantry Lift 785103
FEATURES:
- Available in 8′; 10′; 12′; 15′; 3 m; 4 m & 5 m sizes
- 2 Metric Ton (4;450 lb) Capacity
- Lightweight & Portable
- Quick Two-Person Assembly
- Adjustable Span
- Minimum Pieces – 2 A-Frames with casters; Trolley; Cross Beam and attaching hardware
- Aluminum Frames & Beam
- 8″ (200 mm) Locking Casters
- Quick Height Adjustment
- Pinch Point Free
SPECIFICATIONS:
| Part # | Gantry Model | Max/Min Height to Lifting Eye | Max Height to Top of Trolley | Max Working Span | Spans Between Wheels | Height Adjustment | Span Adjustment | Max width of “A” Frame | Stored Height of “A” Frame |
|---|---|---|---|---|---|---|---|---|---|
| 785103 | GH2T-8 (8’/8″ casters) | 114″ 84″ | 128.5″ | 58″ | 96″ | 6″ | 13″ | 60.625″ | 100″ |
“
