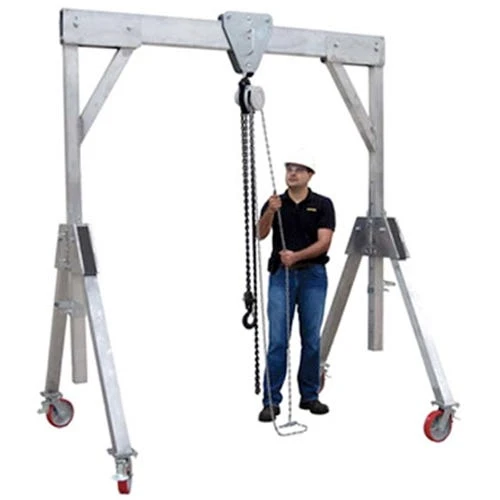

Sumner GH 3/4 Ton 10′ Beam Gantry Lift (8′ Casters) Aluminum 785305

Sumner

GH3/4T-10 (10′ / 8 Casters) 1650 lb Gantry Lift 785305

3/4 Metric Ton Aluminum Gantry

FEATURES:

• Available in 8′; 10′; 12′; 15′; 3 m; 4 m & 5 m sizes
• 3/4 Metric Ton (1;650 lb) Capacity
• Lightweight & Portable
• Quick Two-Person Assembly
• Adjustable Span
• Minimum Pieces – 2 A-Frames with casters; Trolley; Cross Beam and attaching hardware
• Aluminum Frames & Beam
• 8″ (200 mm) Locking Casters or 10″ (250 mm) Flat Free Double Locking Casters (GH3/4T only)

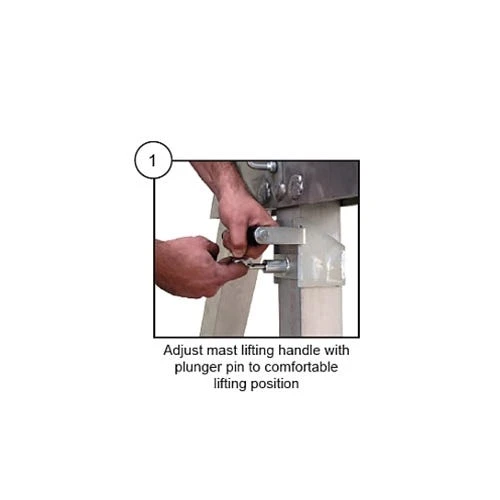

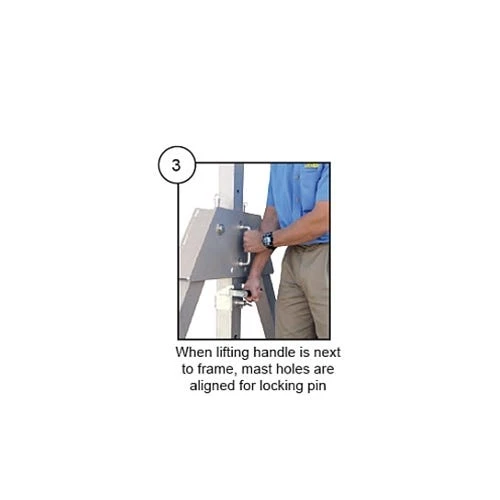

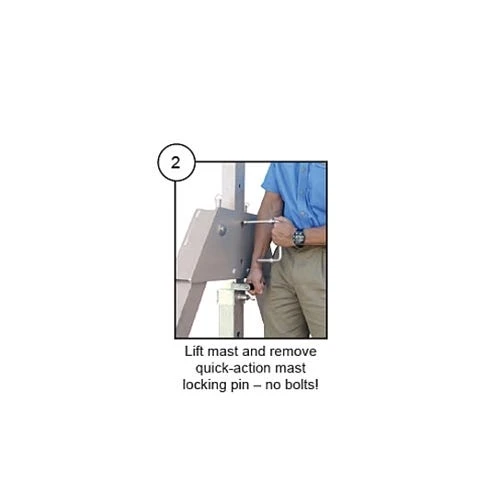

• Unassisted Height Adjustment
• Pinch Point Free

SPECIFICATIONS:

Part No.	Gantry Model	Max/Min Height to Lifting Eye	Max Height to Top of Trolley	Max Working Span	Span Between Wheels	Height Adjustment	Span Adjustment	Max Width of “A” Frame	Stored Height of “A” Frame
785305	GH3/4T-10 (10’/8″ casters)	116″ – 86″	128.75″	94″	112″	6″	9″	60.625″	100″

*15 ft & 5m Gantry lifts have 2 span adjustments. 3m; 4m; 12 ft and 10 ft models have 1 span adjustment. 8 ft models have no span adjustment.

“
