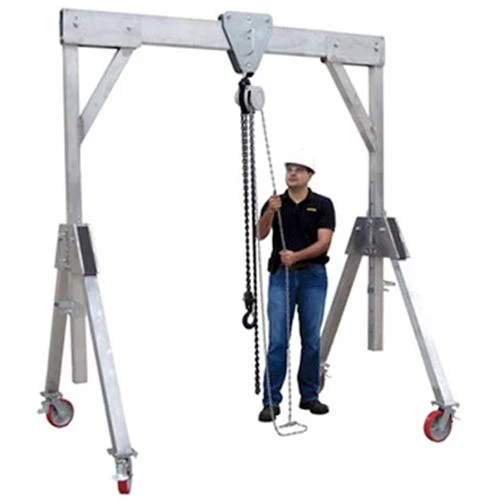

Sumner GH 3/4 Ton 12′ Beam Gantry Lift (8′ Casters) Aluminum 785303

Sumner

GH3/4T-12 (12′ / 8 Casters) 1650 lb Gantry Lift 785303

3/4 Metric Ton Aluminum Gantry

FEATURES:

• Available in 8′; 10′; 12′; 15′; 3 m; 4 m & 5 m sizes
• 3/4 Metric Ton (1;650 lb) Capacity
• Lightweight & Portable
• Quick Two-Person Assembly
• Adjustable Span
• Minimum Pieces – 2 A-Frames with casters; Trolley; Cross Beam and attaching hardware
• Aluminum Frames & Beam
• 8″ (200 mm) Locking Casters or 10″ (250 mm) Flat Free Double Locking Casters (GH3/4T only)

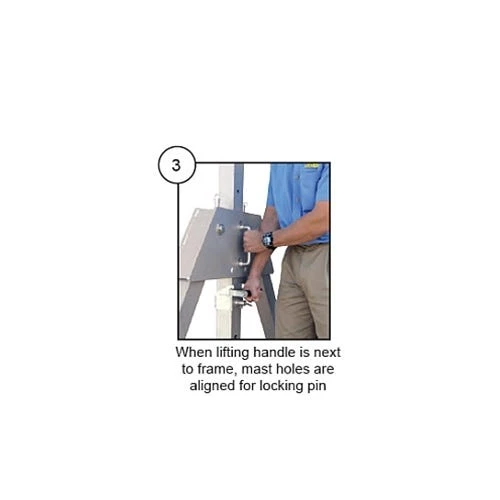

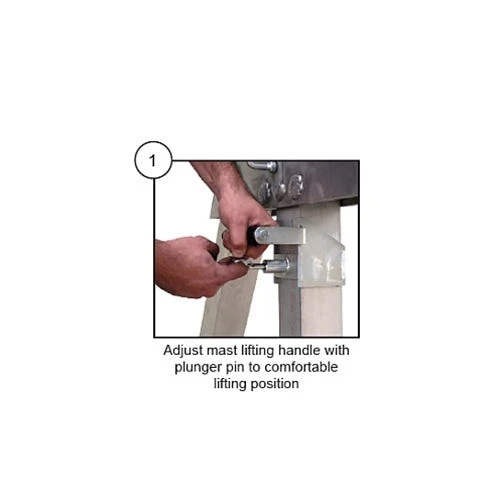

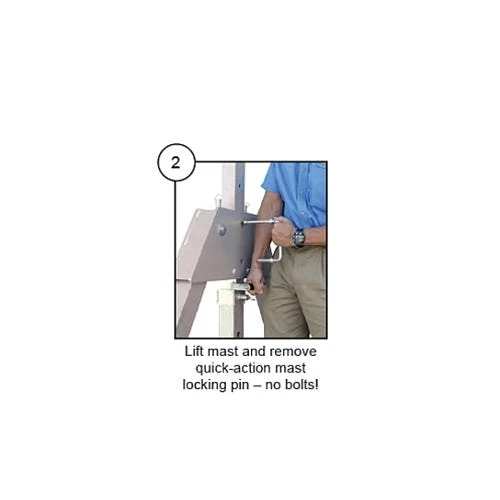

• Unassisted Height Adjustment
• Pinch Point Free

SPECIFICATIONS:

Part No.	Gantry Model	Max/Min Height to Lifting Eye	Max Height to Top of Trolley	Max Working Span	Span Between Wheels	Height Adjustment	Span Adjustment	Max Width of “A” Frame	Stored Height of “A” Frame
785303	GH3/4T-12 (12’/8″ casters)	116″ – 86″	128.75″	118″	136″	6″	9″	60.625″	100″

“
